As the starting point of the packaging line, the bottle unscrambler is responsible for organizing and delivering containers in a consistent, stable, and high-speed manner to downstream processes.
Disruptions such as jams, fallen bottles, or throughput fluctuations force downstream operations to slow or stop, causing production downtime, material waste, and increased operational costs. Establishing a systematic preventive maintenance program reduces unplanned downtime, extends equipment life, and ensures production continuity.
This article analyzes common failures of the unscrambler machine and provides targeted troubleshooting and maintenance guidelines.
Jams and blockages are among the most common physical failures in bottle unscramblers, characterized by bottles stalling at guides, timing screws, or starwheels, triggering alarms or continuous shutdowns.
l Improper Parameter Setup: After a container changeover, the timing screw pitch, guide rail width, and side rails may not be precisely adjusted to match the actual bottle diameter and height, resulting in channels that are either too tight or too loose.
l Component Loosening or Misalignment: Prolonged machine vibration can cause guide plates, screw supports, side rails, and other critical channel components to loosen or shift from their correct positions, creating pinch points or obstructions.
l Container Defects: Bottles with deformities, flash, excess material, or prominent mold parting lines may physically interfere with the unscrambling channels.
l Safe Clearing: In the event of a jam, immediately stop the machine and manually clear the blockage. Never attempt to forcefully dislodge bottles while the machine is powered on, as this can damage equipment or create safety hazards.
l Parameter Verification: Re-check and lock down guide rail spacing, timing screw clearance, and starwheel fit according to the current container’s dimensional specifications, ensuring all channels are correctly matched.
l Wear Inspection: Regularly inspect guide plates, timing screw surfaces, and side rail contact areas. If significant wear grooves or surface roughness are found, perform surface restoration or replacement promptly to prevent worsening jam conditions.
Orientation errors or fallen bottles prevent downstream equipment from correctly picking or filling containers, severely impacting production rhythm and the yield of the bottle unscrambler.
l Flip Mechanism Issues: Worn flip fingers, uncoordinated motion, or delayed resetting can cause bottles to lose control during the flipping process, preventing them from entering the correct track.
l Visual/Photoelectric Misjudgment: Directional sensors (photoeyes) may fail to correctly identify bottleneck orientation due to position drift, improper focal length, or lens obstruction by dust.
l Incompatibility with Unusual Container Shapes: Standard unscrambling logic may fail to reliably orient non-symmetrical, flat, or uniquely shaped bottles without customized adjustments.
l Spot Observation: When fallen bottles occur, carefully observe the exact point of failure to quickly pinpoint the source.
l Cleaning and Calibration: Periodically clean sensor lenses, calibrate sensing sensitivity using a standard container, and confirm that detection signals are synchronized with actuator timing (e.g., flip cylinders, reject mechanisms).
l Custom Optimization: For unusual bottle shapes, consider adding auxiliary guides, modifying flip finger geometry, or adjusting PLC flip timing to accommodate specific container characteristics.
The bottle unscrambling machines operate but fail to achieve the rated throughput, characterized by intermittent bottle shortages, inconsistent supply, or periodic stoppages.
l Infeed Bottlenecks: Slipping elevator belts or loose lift plates can prevent bottles in the hopper from entering the unscrambler machine main unit consistently.
l Phase Shift: Elongated drive chains due to wear or loose synchronous belts can cause a loss of timing between the starwheel and the timing screw, leading to mismatched hand-over points.
l Static Interference: In dry environments, static electricity generated by plastic bottles causes them to attract each other or adhere to the hopper walls, hindering smooth separation.
l Feed System Adjustment: Adjust the elevator angle to ensure smooth flow from the bulk hopper; inspect and tighten or replace slipping elevator belts and worn lift plates.
l Synchronization Calibration: Tighten all synchronous drive components, check chain tension, and recalibrate the phase alignment between the starwheel and timing screw according to the unscrambler machine manual.
l Static Elimination: Install ionizing bars at key locations, such as the unscrambling disc outlet and guide rail entry points, to neutralize static charges. Maintain clean equipment surfaces to minimize static buildup exacerbated by dust.
Frequent false sensor triggers lead to repeated machine stoppages or rejection of good containers.
l Environmental Contamination: Dust, moisture, or residual liquid from filling operations can contaminate the optical surfaces of photoelectric sensors, causing signal attenuation or false triggering.
l Electrical Interference: Damaged signal cable shielding, poor grounding, or routing signal cables alongside high-power cables can introduce electrical noise, leading to controller misreads.
l Component Aging: Sensors operating continuously under high-frequency conditions may experience internal component degradation, slower response times, or intermittent failure.
l Regular Cleaning: Use lint-free wipes to clean sensor surfaces regularly, maintaining optical clarity for the bottle unscrambler.
l Connection Check and Isolation: Inspect and secure all electrical terminal connections. Route signal cables separately from high-power cables and ensure shielding is properly grounded.
l Preventive Replacement: Proactively replace sensors that have reached the end of their typical service life or have exhibited frequent failures to avoid sudden, prolonged downtime.
Unusual noise or vibration often signals mechanical wear within the unscrambler machine.
l Lubrication Failure: Dry friction in bearings, gears, or chains due to a lack of lubrication, resulting in sharp, high-pitched screeching.
l Foreign Object Ingress: Broken glass, fallen bolts, or other debris trapped within the rotating disc or drive transmission gaps.
l Mechanical Wear: Damage to the main shaft or motor bearings, causing a shift in the center of rotation and leading to severe structural vibration.
l Site Clearing: Stop the machine immediately to inspect the travel path and remove any debris or foreign objects.
l Systematic Lubrication: Strictly follow the lubrication schedule using specified food-grade or pharmaceutical-grade grease; avoid mixing different lubricant brands or types.
l Diagnostic Inspection: Maintenance personnel should periodically "audit" the motor and main shaft for acoustic irregularities to identify hidden risks and perform preventive replacement of worn bearings or gears.
By logging every fault, maintenance activity, and component replacement, you can utilize data analysis to predict potential risks before they cause costly downtime.
Human error is a leading cause of avoidable damage. Operators should undergo standardized certification for Changeovers, ensuring that all parameters are adjusted correctly the first time, every time.
For critical wear parts such as guide plates, suction cups, and sensors, always prioritize original manufacturer spare parts to guarantee perfect mechanical compatibility and performance.
Ensure the equipment base is level and stable. Strictly control workshop temperature and humidity to minimize fluctuations in the physical characteristics of packaging materials (e.g., static or brittleness).
Leverage the technical resources of industry experts. Partnering with experienced manufacturers such as PHARMAPACK enables access to advanced technical support, periodic system audits, and operator training programs.
As outlined in this guide, the long-term, high-efficiency operation of a bottle unscrambler relies on both precision manufacturing and scientific maintenance.

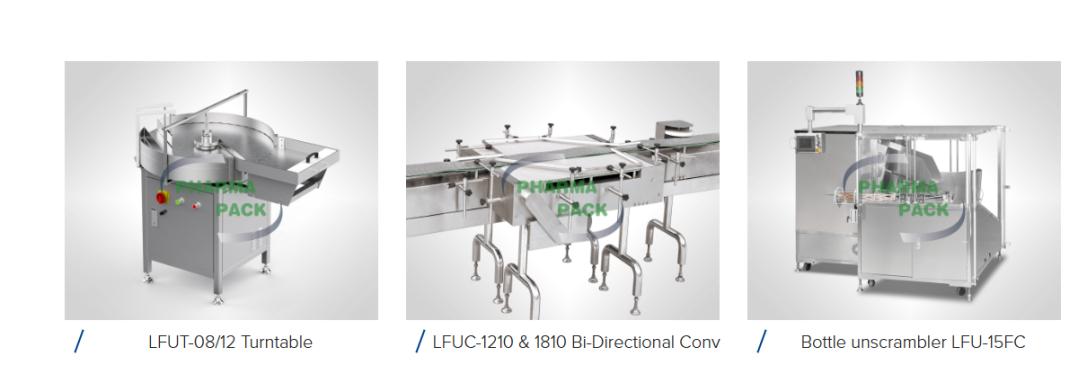

PHARMAPACK provides more than just high-flexibility, high-output automatic bottle unscrambler machines; we offer a comprehensive packaging assurance solution based on Full Lifecycle Management.
Whether you are facing the challenges of complex, irregularly shaped bottles or the demands of ultra-fast changeovers, PHARMAPACK is ready to help you optimize your production process and achieve consistent container stability throughout the packaging line.
