As competition in the pharmaceutical industry continues to intensify, small and mid-sized manufacturers are under growing pressure to control costs while maintaining strict compliance standards.
Choosing the right pharmaceutical packaging equipment can directly impact both operational efficiency and long-term profitability.

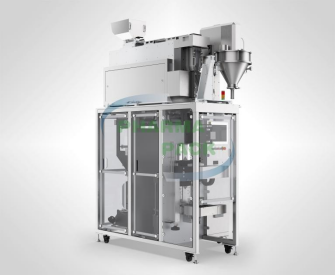

The PHARMAPACK LFVS-01S 3-in-1 Stick Packing Machine is engineered to help manufacturers balance production flexibility, equipment investment, and GMP requirements within a compact footprint.
Understanding why pharmaceutical packaging machine selection matters starts with recognizing the real difficulties on the production floor.
Budget constraints are a persistent reality for smaller manufacturers. Buying separate machines for powders, liquids, and tablets is expensive. Even worse, those machines often sit idle between production runs.
This fragmented approach raises the total cost of ownership without a proportional improvement in output capacity.
Traditional single-function packaging units tend to be large. Operating several of them simultaneously consumes warehouse and logistics space, disrupting the overall production workflow.
For companies working in leased facilities or compact cleanrooms, space efficiency becomes a practical concern rather than just a convenience.
Unlike large manufacturers that focus on high-volume production, small pharmaceutical companies often manage multiple SKUs and shorter production runs. They routinely handle multi-product, small-batch orders, meaning that dosage forms and packaging specifications change frequently.
Conventional equipment often requires lengthy cleaning procedures, parts replacement, and manual parameter adjustments between runs, leading to unnecessary downtime.
Pharmaceutical production must strictly follow GMP guidelines regardless of company size.
Issues such as inaccurate filling, inconsistent sealing, or poor cutting performance can lead to product waste, dosage inconsistency, and potential compliance risks.
Consistent metering accuracy is therefore essential for minimizing product loss and ensuring dosage uniformity across every packaged unit.
The LFVS-01S 3-in-1 automatic packing machine is engineered specifically to consolidate functionality, reduce footprint, and meet GMP standards.
One of the key features of the LFVS-01S is its integrated 3-in-1 filling architecture.
(1) Servo-screw Metering for Powders:
A servo motor drives a screw conveyor to transport powder from a hopper to a filling funnel. Precise control of screw speed and rotation helps maintain stable fill weights while reducing material waste.
(2) Counting System for Tablets and Capsules:
The counting module is suitable for tablets, sugar-coated pills, soft capsules, hard capsules, and other solid dosage forms.
A servo-controlled material gate achieves higher speed and precision, while servo-driven blanking rotation reduces noise and eliminates the common problem of tablet omission near the gate.
(3) Liquid Pump Metering for Oral Solutions:
A servo motor drives a ceramic pump to meter and fill liquid products. Filling parameters can be adjusted for different product specifications, enabling fast transitions between liquid formulations.
Each functional component of the LFVS-01S stick packing machine is built on a modular framework. Through the servo control system, individual modules operate in coordination, improving both system stability and production efficiency.
When an order calls for a different dosage form or package specification, the relevant module can be reconfigured quickly, shortening changeover time and improving overall line efficiency.
The automatic packing machine is also equipped with an industrial control computer and a recipe management system.
Different product parameters are stored as named recipes, and operators can quickly recall saved product recipes instead of manually re-entering production parameters. This decreases setup errors and speeds up line readiness.
Space optimization is at the heart of the LFVS-01S design. The automatic packing machine has a compact footprint of approximately 2000 mm × 1200 mm, making it well-suited for space-constrained GMP facilities.
By integrating powder filling, tablet counting, and liquid filling into one platform, companies can drastically reduce the space required for their packaging lines, leaving more room for secondary packaging or raw material storage.
Designed for the rigorous environment of a pharmaceutical cleanroom, the LFVS-01S stick packing machine prioritizes hygiene.
l Material Quality: All components in direct contact with the product are constructed from high-grade stainless steel and aluminum, preventing rust and contamination.
l Safety Interlocks: The machine is equipped with multiple safety sensors that trigger an automatic alarm and shutdown if a door is opened or a line disconnect is detected.
l Precision: The high-precision sensing technology ensures that every stick is cut and sealed with an accuracy of ≤±5%, meeting strict dosage requirements.
Small pharmaceutical manufacturers need equipment that can adapt to changing production demands without adding unnecessary cost or complexity.
The LFVS-01S is designed with that reality in mind. By integrating a multi-metering architecture, modular servo design, and a compact, GMP-aligned build, this 3-in-1 stick packing machine directly addresses the core operational challenges facing modern drug manufacturers.
To learn more about how the LFVS-01S can optimize your production line, contact us for detailed technical specifications and customized packaging solutions.
