Accurate counting is a critical part of pharmaceutical and nutraceutical packaging. Companies producing capsules, tablets, and soft gels need equipment that can deliver high-speed performance while maintaining strict accuracy standards. At Pharmapack, we provide advanced capsule counting machine solutions designed to simplify bottle packaging processes and support modern production requirements. By combining counting, inspection, filling, and weighing functions, our equipment helps pharmaceutical manufacturers improve efficiency, reduce errors, and optimize production space.
The Importance of Accurate Counting in Pharmaceutical Packaging
Pharmaceutical products require extremely precise handling because incorrect quantities can affect product quality, regulatory compliance, and customer trust. Traditional manual counting methods are difficult to maintain in large-scale production environments due to slower speed and higher risks of human error.
An automatic product counting machine provides a reliable solution by using advanced detection technology to count products quickly and accurately before they enter bottles. These machines help pharmaceutical companies maintain consistent packaging standards while increasing production capacity.
Pharmaceutical manufacturers need more than simple counting equipment. Our capsule counting machine solutions are designed as complete packaging systems that integrate multiple functions, helping customers create smoother and more efficient production workflows.
Pharmapack ALFM-32C IN-MOTION Modular Counter for High-Speed Production
As one of the pharmaceutical and nutraceutical manufacturers, we developed the ALFM-32C IN-MOTION Modular Counter. This advanced system is designed for counting and sorting tablets, capsules, and soft gels into bottles with high accuracy and efficiency.
The ALFM-32C can achieve a maximum production speed of 24,000 pieces per minute, depending on the product type and container size. This high-speed capability makes it suitable for businesses that require reliable large-volume packaging performance.

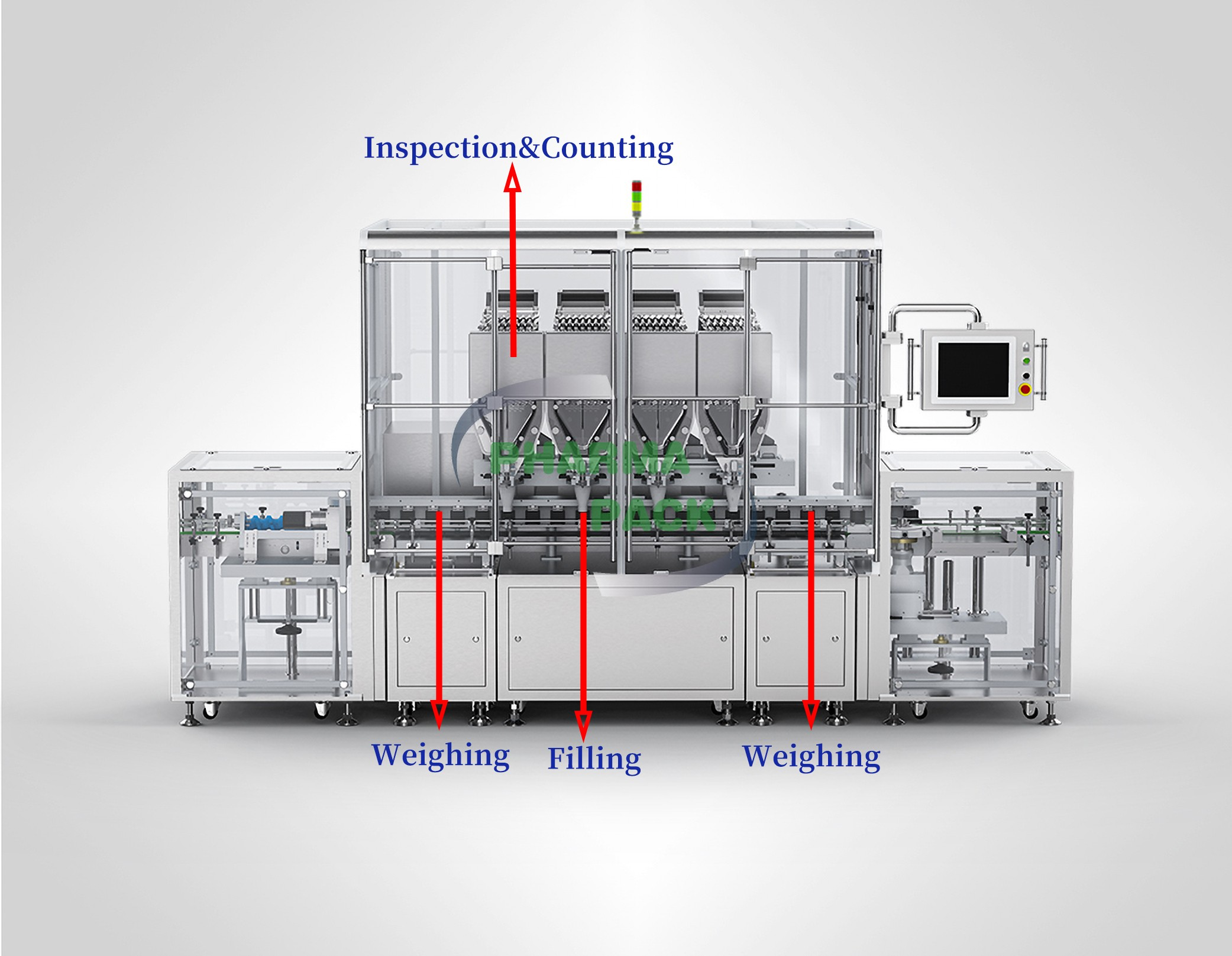

Compared with conventional counting equipment, the ALFM-32C combines counting with inspection, filling, and weighing functions in one machine. This integrated design helps reduce equipment footprint while improving production control.
Advanced Working Principle Ensures Counting Accuracy
The performance of an automatic product counting machine depends on how accurately it can detect and process individual products. The ALFM-32C uses a multi-stage feeding and detection system to achieve stable operation.
Products are loaded into the hoppers manually or through an optional automatic feeding system. They are then transferred onto three-grade vibratory plates. By adjusting the vibration frequency, products move smoothly through dedicated channels in a continuous and single-file arrangement.
At the end of each channel, products enter detection tunnels. Using photoelectric technology, infrared dynamic scanning sensors generate working signals when each product passes through the detection area. These signals are processed by a high-speed microprocessor unit, allowing the machine to complete accurate counting through the cooperation of electronic and mechanical systems.
After counting, products from each eight-channel group are transferred into filling nozzles. Four vibration filling nozzles help deliver the required number of products into bottles efficiently and consistently.
Integrated Weighing Function Improves Packaging Reliability
Counting accuracy is essential, but additional verification can further improve packaging quality. The ALFM-32C includes a static weighing system that provides an extra layer of quality control.
Before filling, empty bottles or bottles containing desiccants are transferred to the weighing system through a screw mechanism. The machine records the initial bottle weight and stores the data for comparison.
After the capsule or tablet filling process is completed, the bottles are weighed again. The system automatically compares the weight before and after filling to confirm whether the correct quantity of products has been added.
This dual verification process helps pharmaceutical manufacturers identify potential counting differences and maintain consistent product quality throughout production.
Smart Rejection System Supports Quality Management
Maintaining packaging consistency requires an effective method for removing products that do not meet requirements. The ALFM-32C is equipped with a rejection system that automatically identifies and removes bottles with incorrect weight caused by different product counts or product weight variations.
Through this automated inspection process, manufacturers can reduce manual checking requirements and improve overall production reliability. The combination of counting, weighing, and rejection functions makes the machine a comprehensive solution for pharmaceutical packaging applications.
Why Choose Pharmapack as Your Packaging Technology Partner?
Selecting the right capsule counting machine supplier is an important decision for pharmaceutical companies seeking long-term production stability. Equipment quality, technical support, and innovation capabilities all influence the success of automated packaging operations.
At Pharmapack, we have more than 20 years of experience in pharmaceutical packaging machinery development. Our professional R&D teams focus on creating advanced solutions supported by hundreds of patents and software copyrights.
We provide complete packaging solutions, including smart bottle packaging lines, inspection systems, flexible packaging solutions, and secondary packaging equipment. Through continuous innovation and global service support, we help customers improve efficiency and adapt to changing market demands.
Creating Simpler and Smarter Bottle Packaging Solutions
Modern pharmaceutical manufacturing requires packaging equipment that combines speed, accuracy, and intelligent control. An advanced automatic product counting machine can significantly improve production efficiency while ensuring reliable product quality.
With the ALFM-32C IN-MOTION Modular Counter, Pharmapack helps pharmaceutical and nutraceutical companies simplify bottle packaging through integrated counting, inspection, filling, and weighing technologies. We continue developing packaging solutions that improve process consistency, reduce manual handling, and support stable pharmaceutical production worldwide.
