For capsule packaging, counting accuracy is only part of the production challenge. The feeding process must also remain stable when capsules vary in size, shape, weight, or surface characteristics. Poor feeding can cause overlapping products, inconsistent flow, counting interruptions, and unnecessary product loss. For manufacturers handling continuous production, choosing an appropriate automatic pill counter means evaluating the complete feeding and counting process rather than focusing only on nominal output.
At Pharmapack, we develop pharmaceutical packaging equipment around these practical production requirements. Our LF series tablet and capsule counters use controlled vibratory feeding, multi channel separation, sensor based counting, and automatic bottle positioning to support consistent capsule handling.
Why Capsule Feeding Stability Matters
Capsules do not always behave like uniform tablets. Their elongated shape and relatively light weight can make them more sensitive to feeding conditions. If several capsules enter a detection area together or fail to separate properly, the counting system may experience interruptions or require adjustments.

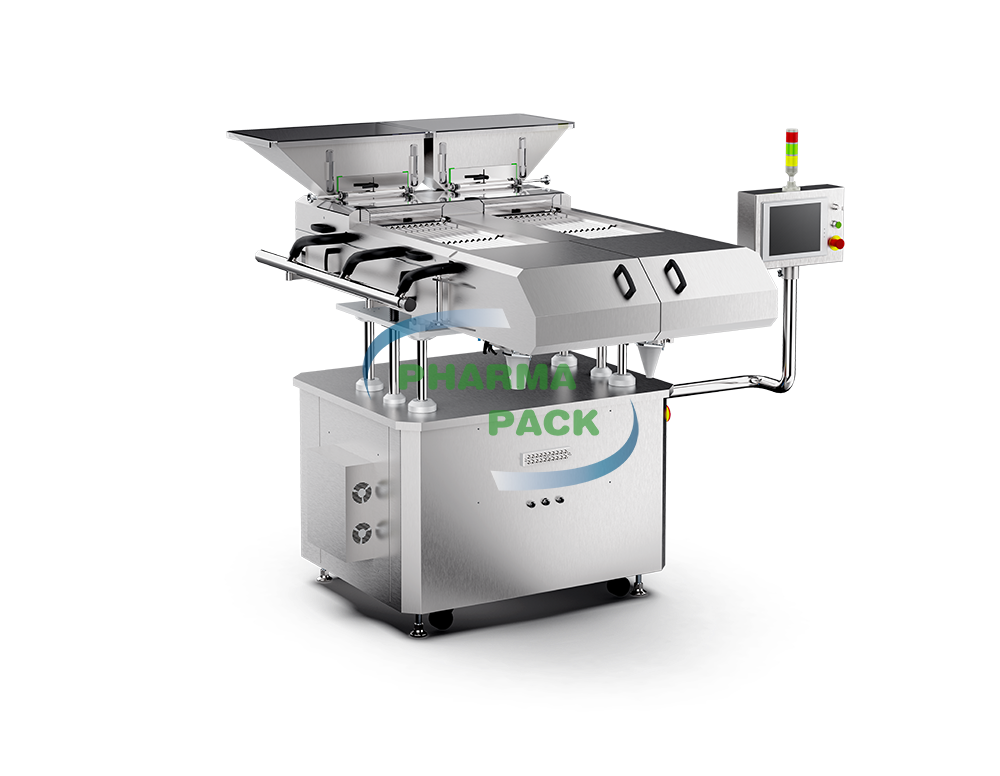

A stable feeding system therefore needs to distribute capsules into individual paths before they reach the counting sensors. In the Pharmapack LF-12, products pass through three grade vibratory plates and are separated into 24 channels. The controlled vibration allows products to move continuously in single file before entering the detection tunnels.
This separation is important because counting accuracy depends on consistent product presentation. Other automatic counting systems also use vibration and optical or photoelectric detection to separate and count tablets and capsules, demonstrating the importance of coordinated feeding and sensing in automated packaging.
How an Automatic Pill Counter Handles Sticky or Difficult Capsules
When capsules have a tendency to adhere, cluster, or move irregularly, simply increasing the feeding speed may not solve the problem. Excessive vibration can create unstable movement, while insufficient vibration may result in product accumulation.
A better approach is to regulate feeding conditions so that capsules are gradually distributed across individual channels. The LF-12 uses adjustable vibration frequency to control how products move through its feeding plates. Once the capsules reach the detection tunnels, sensors work with the control system to determine the preset quantity.
After the required count is reached, the tunnel gate closes while the nozzle gate opens to release the counted capsules into the bottle. The bottle positioning system then releases the filled container and positions the next empty bottle. This coordinated sequence helps connect counting with downstream filling operations instead of treating the counter as an isolated machine.
What to Consider When Choosing Pharmaceutical Counting Equipment
Production teams usually need to consider more than counting speed when selecting equipment. Product dimensions, container specifications, cleaning requirements, changeover procedures, and available floor space can all affect equipment selection.
For example, the Pharmapack LF-12 has a stated maximum output of up to 12,000 pieces per minute, while the actual production speed depends on the size of the product being handled. Its filling quantity can be set from 1 to 1,000 pieces, with applicable product dimensions covering thicknesses of 3 to 10 mm, diameters of 3 to 13 mm, and lengths of 3 to 21 mm.
This information should be considered together with the actual capsule specifications and required production rate. A machine with a high nominal capacity is not automatically suitable for every capsule. Stable feeding at the required operating speed is more relevant to day to day production performance.
Cleaning and Changeover Are Part of Counting Performance
Product contact design is another important consideration for pharmaceutical packaging equipment. Residual material around feeding channels or detection areas can interfere with smooth product movement and increase cleaning time.
The LF-12 uses 316 stainless steel for product contact parts, and these components can be disassembled for cleaning. Pharmapack also designs the machine with relatively few change parts for different container sizes, with the nozzle being the primary change part specified for container adaptation.
For facilities handling multiple products, these details can directly affect changeover efficiency. Easy access to contact parts also makes routine cleaning more practical between production runs.
Selecting a Pharmaceutical Equipment Manufacturer for Long Term Use
The choice of a pharmaceutical equipment manufacturer should consider both machine specifications and the practical requirements of the packaging line. Questions about product compatibility, feeding stability, cleaning, integration, container range, and technical support should be addressed before equipment selection.
At Pharmapack, our counting equipment is designed to work as part of broader pharmaceutical bottle packaging systems. The LF-12 can handle different product and container specifications within its stated operating range, while its counting, filling, and bottle positioning functions are coordinated through the machine control system.
For capsule products that present feeding challenges, testing the actual product on the equipment can provide more useful information than relying solely on standard specifications. It allows production teams to evaluate feeding behavior, counting consistency, changeover requirements, and compatibility with the intended packaging process.
Supporting More Consistent Capsule Packaging
An automatic pill counter needs to do more than recognize individual products. Stable feeding, controlled separation, reliable detection, straightforward cleaning, and coordinated bottle filling all contribute to consistent operation.
With its multi channel vibratory feeding system, sensor based counting process, 316 stainless steel product contact parts, and automated bottle handling, the Pharmapack LF-12 provides a practical approach to tablet and capsule counting. For manufacturers dealing with difficult or sticky capsules, evaluating feeding stability alongside counting performance can help identify equipment that fits actual production conditions.
