Tall round bottles can create a specific challenge during automatic labeling. Their height-to-diameter ratio makes them more susceptible to movement, rotation, or slight tilting as they travel through a production line. Even a small amount of wobble can affect label placement, especially when the application requires consistent positioning across a large number of containers.
At Pharmapack, we approach this challenge through coordinated bottle feeding, positioning, label dispensing, and conveyor control. For manufacturers handling pharmaceutical bottles and other round containers, a properly configured round bottle labeling machine can help maintain stable product movement and consistent label application.
Why Tall Bottles Are More Difficult to Label
A tall container has a higher center of gravity than a short, wide container. When it accelerates, changes direction, or contacts a labeling mechanism, unwanted movement can occur. This becomes more noticeable when the bottle diameter is relatively small compared with its height.
The problem is not simply whether the label reaches the bottle. The container must remain in a controlled position while the label is dispensed and pressed onto its surface. If the bottle shifts during this process, the label may be applied too high, too low, or at an angle. Wrinkles and uneven label edges can also appear.
For pharmaceutical packaging, where labels may carry product information, lot numbers, expiration dates, or other important information, repeatable placement is an important part of the packaging process.
Stabilizing the Bottle Before Label Application

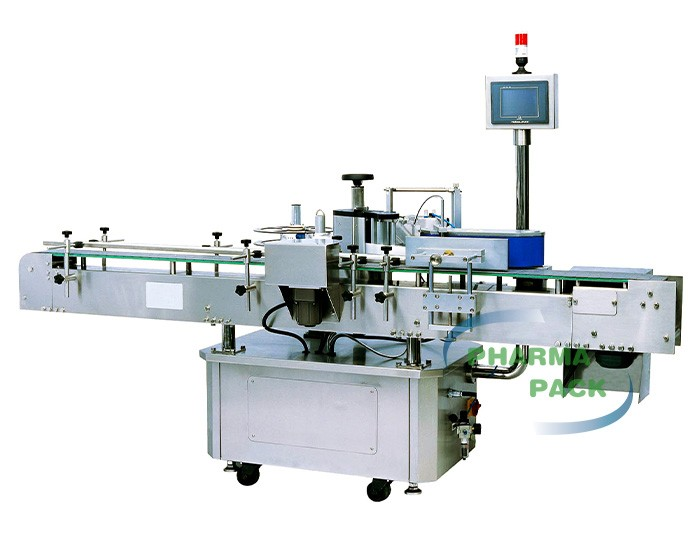

Bottle handling begins before the label reaches the container. Pharmapack's LFLB-1120 vertical round bottle labeling machine uses a bottle separator to feed containers onto the conveyor at controlled intervals. A product sensor detects the bottle and triggers label dispensing at the appropriate point. The side conveyor then supports the labeling process as the container moves through the application area.
This coordinated movement matters for tall containers because stable spacing reduces unnecessary contact between bottles. Consistent bottle positioning also gives the labeling head a predictable target.
The LFLB-1120 accommodates container diameters from 16 mm to 120 mm and has a maximum production speed of 400 bottles per minute, depending on the product being handled. Its published label dispensing accuracy is ±1.0 mm, while the labeling head is designed for repeatable accuracy of 0.5 mm.
Coordinating the Labeling Head With Bottle Movement
A round bottle labeling machine must control more than label placement. It also needs to synchronize the dispensing mechanism with the movement of the container.
Pharmapack uses a servo driven labeling head to provide repeatable label positioning. Dual rollers help control label dispensing, while the liner rewind system works with a label sensor to coordinate label movement. This arrangement helps maintain consistent dispensing as bottles pass through the labeling station.
For tall bottles, this synchronization can be particularly useful. If the label is released too early or too late, the resulting positional error becomes more visible on a tall container. Stable bottle handling combined with controlled label dispensing creates a more predictable application process.
Reducing Adjustment Time Between Bottle Formats
Production environments may handle several bottle sizes rather than one standardized container. Frequent manual adjustment can introduce another source of inconsistency.
The LFLB-1120 is designed so that changing bottle or label sizes does not require repositioning the sensors. The system can also store up to 50 job setups for different bottle labeling requirements.
For operations that switch between products, saved settings can simplify changeovers and help operators return to established parameters. This is especially useful when different bottle dimensions require different handling conditions.
Supporting Pharmaceutical Packaging Requirements
A pharma labeling machine must consider more than appearance. Labels may contain information that needs to remain readable and correctly positioned throughout packaging and distribution.
Pharmapack's labeling equipment can also be configured with an optional hot stamping printer for manufacturing dates, lot numbers, and expiration dates. The system is designed to communicate with upstream equipment through a programmable controller and communication interface, supporting integration with broader packaging processes.
This makes labeling part of a connected packaging workflow rather than an isolated operation. When feeding, labeling, coding, and other processes work together, manufacturers can maintain better control over container movement and production parameters.
Choosing the Right Round Bottle Labeling Machine
When selecting equipment for tall round bottles, manufacturers should consider container diameter, height, label dimensions, production speed, and the way bottles move through the labeling station. A machine that performs well with short, wide containers may require different handling arrangements for taller formats.
At Pharmapack, we consider these variables when developing labeling solutions for pharmaceutical and other packaging applications. Our LFLB-1120 supports round containers across a broad diameter range while combining controlled feeding, sensor detection, servo driven labeling, and side conveyor support in one system.
The goal is straightforward: keep the bottle stable, synchronize label dispensing with product movement, and maintain consistent positioning throughout production.
Stable Handling for More Consistent Labeling
Tall round bottles do not have to create recurring labeling problems. With controlled bottle separation, stable conveying, synchronized dispensing, and accurate labeling mechanisms, manufacturers can reduce the movement that contributes to uneven application.
Pharmapack's round bottle labeling machine is designed around these practical requirements. By treating bottle stability and label accuracy as connected parts of the same process, our equipment provides a structured approach to pharmaceutical bottle labeling and other round container applications.
