In a modern packaging line, every machine must maintain a consistent operating rhythm. When a counting system runs at high speed, the labeling process cannot become a bottleneck. A mismatch between counting, conveying, and labeling can lead to product accumulation, inconsistent label placement, or unnecessary line stops.
At Pharmapack, we design labeling equipment with line synchronization in mind. Our round bottle labeling machine solutions are developed to work with continuous bottle feeding and upstream packaging equipment, helping manufacturers maintain stable throughput while keeping labeling accuracy under control.
Why Speed Matching Matters in Bottle Labeling
Counting lines are responsible for delivering bottles at a controlled and continuous rate. Once the bottles reach the labeling station, the labeling equipment needs to recognize each container, dispense the correct label, and apply it at the intended position without interrupting product flow.
A labeling machine that operates significantly slower than the upstream counter can create accumulation and reduce overall line efficiency. On the other hand, excessive labeling speed without stable bottle separation can increase the risk of missed or incorrectly positioned labels.
For this reason, speed matching is not simply about selecting a machine with a high maximum output. The complete system needs to coordinate bottle spacing, sensor detection, conveyor movement, label dispensing, and application speed.
How a Vertical Labeling Machine Supports Continuous Production

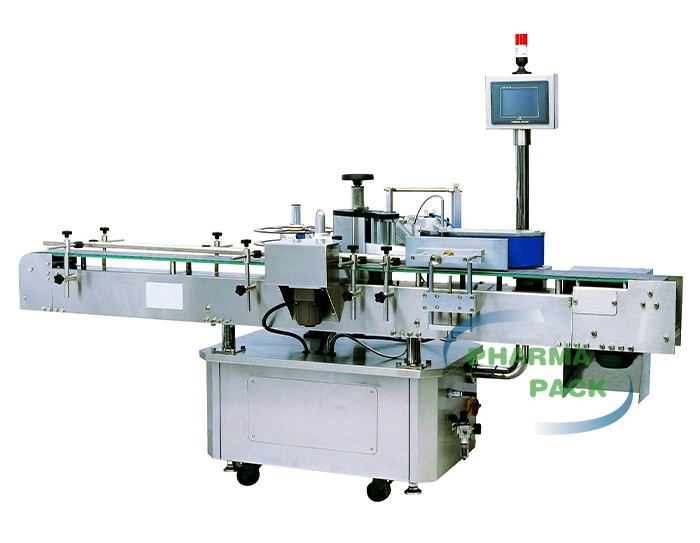

A vertical labeling machine is particularly suitable for cylindrical containers that need wrap-around labeling while remaining upright throughout the process. Pharmapack's LFLB-1120 vertical round bottle labeling machine is designed for containers ranging from 16 mm to 120 mm in diameter, with a maximum production speed of 400 bottles per minute depending on product size.
The machine uses a bottle separator to feed containers onto the conveyor. A product sensor detects each incoming bottle and triggers the label dispensing process. The liner is rewound after label dispensing, while a label sensor controls the movement of the labeling system. A side conveyor further supports stable labeling performance.
This coordinated sequence allows the labeling process to follow the rhythm of the incoming bottles instead of relying on manual intervention.
Maintaining Accuracy at Higher Line Speeds
High throughput is only useful when labels remain consistently positioned. For round containers, even a small positioning variation can affect the appearance of the finished package.
Pharmapack's LFLB-1120 uses a servo-motor-driven labeling head and dual rollers to support controlled label dispensing. The machine provides repeatable labeling accuracy of up to 0.5 mm, while its specified label dispensing accuracy is ±1.0 mm.
The system can also work with an optional hot stamping printer for manufacturing dates, lot numbers, and expiry dates. This allows variable information to be added during the labeling process rather than requiring a separate operation.
Flexible Changeovers for Different Bottle Formats
Production environments often handle more than one bottle size. Frequent manual adjustments can increase setup time and introduce avoidable inconsistencies.
The LFLB-1120 is designed to simplify these transitions. Its control system can store up to 50 job setups for different bottle-label combinations, while the sensors do not require repositioning when bottle or label sizes change.
This flexibility is particularly useful when one packaging line needs to accommodate multiple products without extensive mechanical modification between production runs.
Connecting the Labeler with the Complete Packaging Line
A round bottle labeling machine should not be evaluated as an isolated piece of equipment. Its performance depends on how effectively it communicates with upstream and downstream machinery.
Pharmapack incorporates a programmable MCU controller and communication interface into the LFLB-1120 to support control signal transmission with upstream equipment. This provides a foundation for integrating the labeler into a broader automated packaging process.
For high-speed counting lines, this approach helps coordinate the movement of bottles from counting and feeding through labeling and subsequent packaging stages.
A Practical Approach to Line Speed Selection
When selecting a labeling machine, the maximum advertised speed should not be the only consideration. Bottle dimensions, label size, container stability, spacing requirements, and the actual operating speed of the counting line all affect the achievable output.
Pharmapack evaluates these factors when developing labeling solutions. Our product range includes vertical round bottle labelers, rotary round bottle labelers, horizontal round bottle labeling machines, and equipment for other container formats.
The objective is to create a labeling process that matches the production line rather than simply maximizing the speed of one individual machine.
Keep Counting and Labeling in Sync with Pharmapack
A high-speed packaging line depends on coordination across every stage. With the right round bottle labeling machine, bottle counting and labeling can operate as a connected process, reducing interruptions while maintaining consistent label placement.
Pharmapack's vertical labeling machine solutions combine controlled bottle feeding, sensor-based detection, servo-driven labeling, flexible setup storage, and communication capabilities for automated production environments. By matching labeling performance to the actual requirements of the packaging line, manufacturers can create a more stable and efficient workflow.
