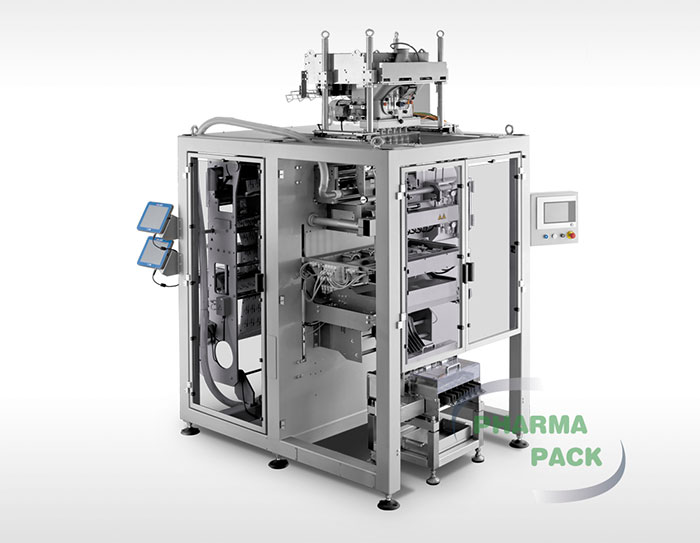

Equipment Introduction

It is an automatic stick packaging machine for tea, coffee, condiment, candy, matcha, milk powder, vitamin, health care products and medical products like pills, tablets, granules, powder, etc.

Working Principle

Put the film on the air shaft of reeling system. → Pull out the film to connect the used film reel. → Film passes through the strainer buffer device. → Laser coding system (option): coding position is adjustable by using hand roller. → Visual inspection system (option): coding position is adjustable by using hand roller. → Vertical row separating → Stick package forming → Vertical sealing → Vertical sealing easy-to-tear notch → Measuring and filling ((measuring cup, screw, counting) → Horizonal sealing → Horizonal sealing easy-to-tear notch → round cutting → weighing for each row.

 Features

(1)Precision packaging: High-precision I-Mark remote control and servo drive to ensure precise packaging and lower noise.

(2)The film tension is controlled by EtherCAT bus servo encoder and the unreeling servo motor is driven by PID (with the position adjustment automatically). The strainer can adjust the reeling speed automatically according to the size of film reel so as to ensure stable reeling of the packaging film.

(3)Servo rectification: automatic rectification for film reeling and adjust two sides on the touch screen as per requirements.

(4)Film changing alarm: The alarm goes off two minutes before the film is exhausted, and the machine will stop running at the designated location before the film is completely exhausted. With vacuum adsorption at the film receiving platform to ensure perfect film connection.

(5)The film rolls are placed inside the chassis and isolated from the outside world to avoid poor sealing caused by dust adhering to the film surface.

(6)Servo-driven vertical sealing: adjustable servo torque, stable and low noise, ensuring the tightness of vertical sealing.

(7)Servo lattice pattern horizonal sealing: adjustable torque, stable fore and low noise, ensuring the tightness of lattice sealing. With good product quality at a high speed, low failure rate and high productivity.

(8)Modular multi-segment horizonal sealing rollers: short sealing roller, easy processing and little deformation. Independent heating and temperature control for each segment, fast heating, even heating, small deformation after heating. Each segment can be adjusted individually.

(9)Servo-driven round cutting system, adjustable speed and servo torque, with stable force and low noise.

(10)With several measuring ways: measuring cup, screw, electronic counting and liquid pump, etc. depending on the product characteristics. Independent servo motor controls the metering of each row. The filling amount is adjustable alone or automatic adjust along with the weighing machine. 316L stainless steel metering box: finishing and grinding flat. The stress is removed before processing to effectively prevent the deformation of powder leakage after processing.

(11)Security: a variety of safety devices are installed in the machine, any door open or line break will automatically alarm.

(12)Convenient operation: the front end of the machine is embedded mechanism, with independent module, optional printing and coding, laser, visual inspection. Spacious space between machines is convenient for operators to use and maintain.

(13)Full GMP compliance: AISI 316L stainless steel and food grade contact parts. AISI 304 stainless steel frame.

(14)Using a touch screen to control multiple laser coding devices, which can unify and adjust parameters with only one setting, avoiding inconsistent input multiple times.

(15)Dust recovery system: vacuum is used to recycle dusty materials. The angle and time of dust extraction can be set to reduce material jam and improve the tightness of stick packaging.

(16)Vibratory feeding: use Festo high-frequency vibratory cylinder to improve the feeding speed and avoid material jam.

How Pharmapack 6-Lane Stick Pack Machine Can Help Your Production

The 6-Lane automatic stick pack machine is greatly improving the production output. It’s suitable for granule, salt, sugar, Ajinomoto, and so on.

Customized Services of Pharmapack

Pharmapack provides turnkey packaging solutions tailored to its customers. Pharmapack offers individual solutions based on the data and needs provided by different customers.

• Professional pre-sales and after-sales service center in Asia, Europe, and North America.

• Solutions for design aspects, commissioning, maintenance, or upgrades.

• Dedicated 24-hour online customer service group

Cases

At present, Pharmapack automatic stick packing machines have been exported to more than 30 countries and regions around the world. We have successfully provided line installations for many well-known companies.

International:

Such as Pfizer, GSK, Johnson & Johnson, Abbott, Sanofi, AstraZeneca, Baxter, Mars, Wrigley, Perfetti, L'Oreal, AVON.

Domestic:

TongRenTang, Salubris, Jilin AoDong, North China Pharmaceutical Company, Harbin Pharmaceutical Group Holding Co., Ltd.

Yunnan Baiyao Group Co., Ltd, Guangzhou Pharmaceuticals. The Yangtse River, Tasly Pharma, Infinitus, BY HEALTH, etc.
