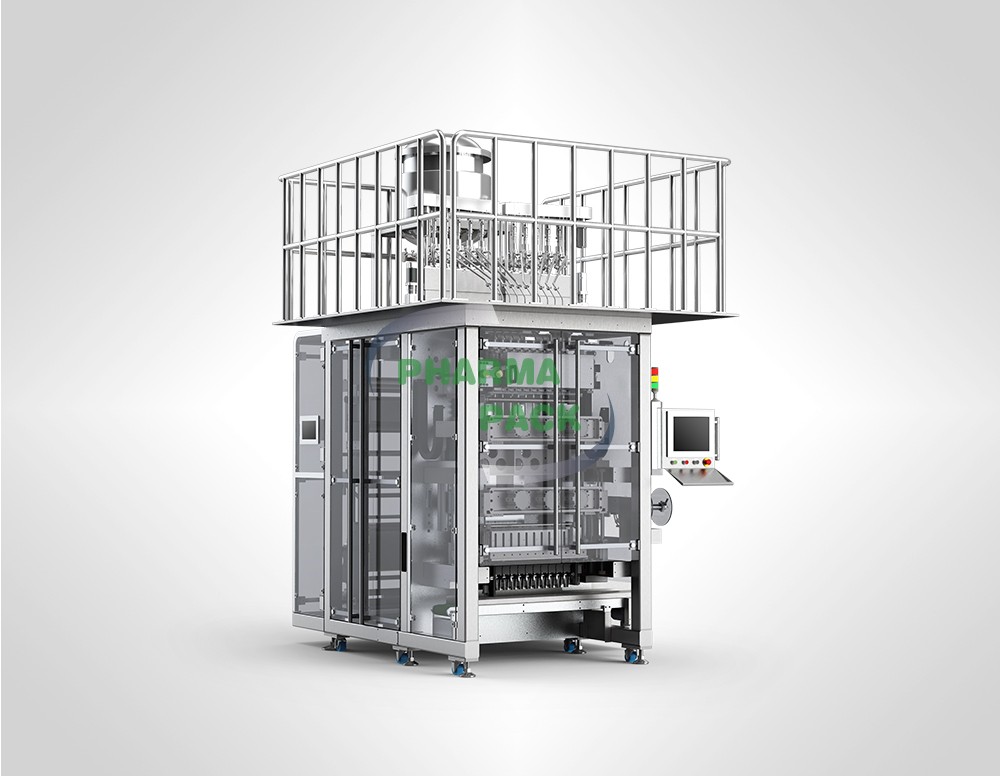

LFVS-10P Automatic stick packing machine 10 row
LFVS-10P
LFVS-10P Automatic stick packing machine 10 row
Maximum Production Speed:75 stokes/min (depending on the size of the product being inspected)

Model

LFVS-10P

Row Number

10 Row

Speed

75 stokes/min

Packing Size

W:15-40mm L:60-200mm (option feature)

Volume

0.5-15g (option volume)

Power Consumption

220/380V, 3P, 50/60Hz

Air Consumption

0.4-0.7Mpa, 800-1000L/min

Packing Materials

AL+PE, OPP+PE, NYLON+PE

Note

The above speed depends on packing material, product, volume, bag size

See More
————— Details —————

APPLICABLE PRODUCTS
1. Especially suitable for 2-3 kinds of material mixed packing.
2. Medicine, coffee, condiments, sugar, powdered tea, granules, medical supplies, powdered milk, supplements for diet, health supplements and other relevant powdered products.
MACHINE FEATURES
1. Automatic Rectification
The film board can be adjusted from left to right, the photocell can be calibrated.
2. Accurate Packing
Highly precise I-MARK sensing and servo drive leads precise packing as well as less noise.
3. Adjustable Packing Length
Packing length can be adjusted by touching of monitor which enables by independent Servo Motor.
4. Twice Sealing
This machine seals products twice consecutively for perfect sealing .The product cutting is being done at the same time the machine does the secondary sealing.
5. Alarm of Replace Film
Alarm gives notice 2 minutes prior to the film is finished When the film is completely consumed, the machine will stop at its Designated position.
6. Safety Assurance
A variety of safety devices installed in a machine and alert when any doors opened or hot-wire snapped via buzzer sounds.
7. Easy Operation
Adjusting handles are located in front of the machine for easy operating.号
OPTIONAL FEATURES
Laser printer prints tearing-line
Faulty weight product detection and rejection
Production Date Printing: Ink Jet Printer or Laser Printer
Sealing Edge: Straight line or Serrated
Outfeeding: integrated line or single machine outfeed
Double-Tearing Area
Empty stick rejection
Sealing: Diamond Seal or Stripes
Different infeeding devices available according to different material and characteristics
