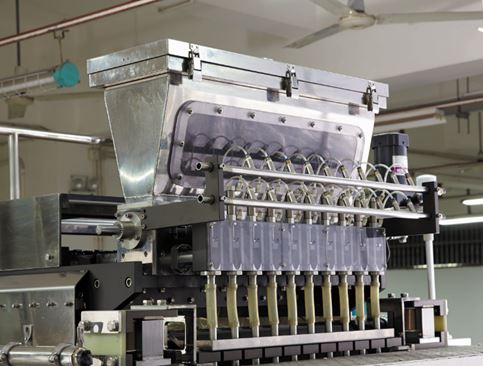

LFVS-10H Automatic Stick Packing Machine 10 Row
LFVS-10H Automatic Stick Packing Machine 10 Row
Maximum Production Speed:75 stokes/min (depending on the size of the product being inspected)

Pharmapack provides tailor-made solutions for customers to meet different production requirements. An automatic stick packaging machine for Diamond Seal or Stripes is your best choice.

Category: Multi-Stick Automatic Packing Machine



Row Number

10 Row


75 stokes/min

Packing Size

W:15-40mm L:60-200mm (option feature)


0.5-15g (option volume)

Power Consumption

220/380V, 3P, 50/60Hz

Air Consumption

0.4-0.7Mpa, 800-1000L/min

Packing Materials



The above speed depends on packing material, product, volume, bag size

Especially suitable for 2-3 kinds of material mixed packing.

See More
————— Details —————

Applicable Products

Automatic stick packaging machine 10-Row can be applied to medicine, coffee, condiments, sugar, powdered tea, granules, medical supplies, powdered milk, supplements for diet, health supplements, and other relevant powdered products.

Machine Features

Automatic Rectification

The film board can be adjusted from left to right, the photocell can be calibrated.

Accurate Packing

Highly precise I-MARK sensing and servo drive lead to precise packing as well as less noise.

Adjustable Packing Length

Packing length can be adjusted by touching a monitor which enables by an independent Servo Motor.

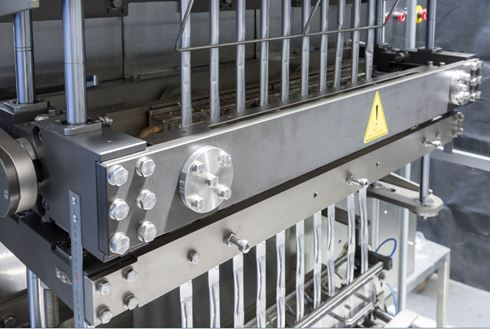

Twice Sealing

This stick pack packaging machine seals products twice consecutively for perfect sealing. The product cutting is being done at the same time the machine does the secondary sealing.

The alarm of Replace Film

The alarm gives notice 2 minutes before the film is finished When the film is completely consumed, the machine will stop at its designated position.

Safety Assurance

A variety of safety devices are installed in a machine and alert when any doors opened or hot-wire are snapped via buzzer sounds.

Easy Operation

Adjusting handles are located in front of the machine for easy operating.

Optional Features

  • Round-cutting Edge

  • Laser printer prints tearing-line

  • Faulty weight product detection and rejection

  • Sealing Edge: Straight line or Serrated

  • Out-feeding: Integrated line or single machine out-feed

  • Double-Tearing Area

  • Empty stick detection

  • Sealing: Diamond Seal or Stripes

  • Different in-feeding devices available according to different materials and characteristics



We know that every business is different. That’s why we provide a variety of custom packaging equipment that meets the unique needs of our clients.


Industry Application

Model: LFVS-10H

Function: LFVS-10H  is an automatic stick packaging machine. It’s designed specifically for medicine, coffee, condiments, sugar, powdered tea, granules, medical supplies, powdered milk, supplements for diet, health supplements, and other relevant powdered products.


How Pharmapack Automatic Stick Packing Machine can help your production

The automaticstick pack machine for sale here greatly improves the production output. Coffee, condiments, sugar, powdered tea, granules, medical supplies, powdered milk, supplements for diet, health supplements, and other relevant powdered products are available.


Customized Services

Pharmapack provides turnkey packaging solutions tailored to its customers. Pharmapack offers individual solutions based on the data and needs provided by different customers.

  • Professional pre-sales and after-sales service center in Asia, Europe, and North America.

  • Solutions for design aspects, commissioning, maintenance, or upgrades.

  • Dedicated 24-hour online customer service group



At present, Pharmapack automatic stick packaging machines have been exported to more than 30 countries and regions around the world. We have successfully provided line installations for many well-known companies.



Such as Pfizer, GSK, Johnson & Johnson, Abbott, Sanofi, AstraZeneca, Baxter, Mars, Wrigley, Perfetti, L'Oreal, AVON.



TongRenTang, Salubris, Jilin AoDong, North China Pharmaceutical Company, Harbin Pharmaceutical Group Holding Co., Ltd.

Yunnan Baiyao Group Co., Ltd, Guangzhou Pharmaceuticals. The Yangtse River, Tasly Pharma, Infinitus, BY HEALTH, etc.

Why Choose Pharmapack Machine

 Experienced R&D Group

PharmaPack congregates advanced technology in the world to supply the most advanced and guaranteed technical support for our customers.


  One-stop Service System

Pharmapack can supply the most perfect "turn-key" packaging solutions for every customer.

 Industry-leading Technology

New servo control with self-detection to replace the old cylinder, the flapper free of dust effect, more stable, longer life-span, lower maintenance cost.

   Excellent Quality Control

Tested by internationally certified companies, Pharmapack equipment has passed the evaluation of CE, UL Certify, CSA and complies with GAMP, FDA (CFR21), cGMP, and TGA standards.
