Pharmaceutical packaging involves several connected steps, and tablet counting is one of the key processes affecting the consistency of the finished bottle. The counting system needs to handle different tablet sizes and production volumes while maintaining a steady flow of bottles through the line. Pharmapack develops counting equipment for these specific production requirements.
Our high-speed tablet counting machine is designed for automated bottle packaging, with a focus on accurate counting and continuous operation. The equipment can be integrated with other packaging units to support processes such as bottle feeding, counting, filling, and inspection. This configuration allows manufacturers to build packaging lines around their actual product and production requirements.
Pharmapack provides pharmaceutical packaging equipment for applications across the pharmaceutical, healthcare, food, and chemical sectors. Our approach focuses on practical equipment configuration, stable operation, and compatibility with different packaging processes, giving customers greater flexibility when planning or upgrading their production lines.
Meeting Modern Demands with High-Speed Tablet Counting Technology
Tablet and capsule counting is a critical step in pharmaceutical bottle packaging. Traditional manual counting methods cannot provide the speed, accuracy, and consistency required by large-scale production. Automated counting equipment allows manufacturers to improve output while reducing the risk of human errors.

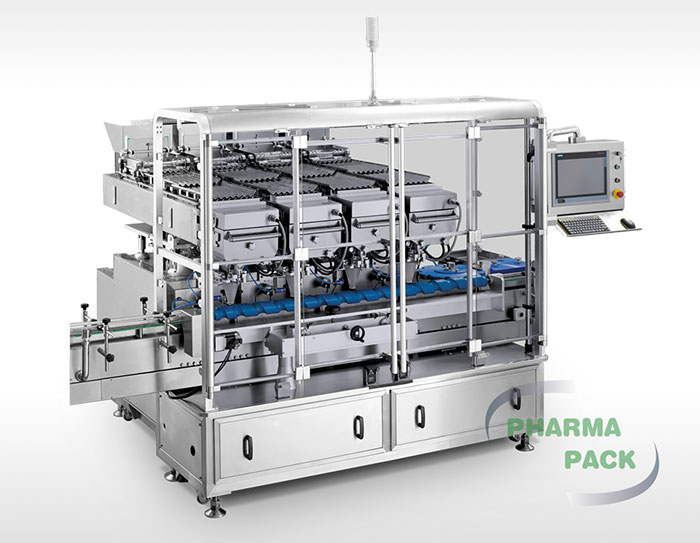

Our LFM-32 Modular Counter is designed to address these challenges through the Pharmapack PP-Modular Series Continuous Motion counting system. This advanced solution provides high-speed counting performance while maintaining accurate product handling.
The LFM-32 achieves a maximum production speed of 24,000 pcs/min, depending on the size of the inspected product. It supports dosage ranges from 1 to 1,000 pieces per bottle, making it suitable for different pharmaceutical packaging requirements.
With a capacity of up to 400 bottles per minute, this system helps manufacturers improve production efficiency without compromising counting accuracy. The equipment is designed for companies that need reliable automation in high-volume tablet and capsule packaging applications.
Flexible Modular Design for Efficient Production
The key advantage of our LFM-32 is its fully modular design. Unlike traditional fixed counting systems, the machine uses independent module heads that can be configured according to different production requirements.
The system supports flexible configurations with 4, 6, 8, or 10 module heads, allowing manufacturers to adjust production capacity based on their actual needs. Each module head includes eight channels, ensuring stable product separation and accurate counting performance.
This modular structure provides greater flexibility for pharmaceutical companies that manage multiple products or changing production volumes. It also simplifies equipment upgrades, allowing businesses to expand capacity without replacing the entire system.
For manufacturers searching for an automatic pill counter machine, flexible configuration is an important factor. A modular solution allows companies to achieve efficient production while maintaining adaptability for future development.
Continuous Motion Filling Improves Bottle Line Performance
Traditional bottle filling processes often require containers to stop during filling, which can reduce production efficiency. Our LFM-32 uses continuous motion counting technology, allowing bottles to be filled while moving.
This continuous filling method improves the overall speed of the packaging line and reduces unnecessary waiting time. By combining counting and bottling functions, the system helps manufacturers create a smoother and more efficient workflow.
The compact structure also allows easy integration into existing bottle packaging lines. With minimal change parts and a small footprint, the equipment can fit into different production environments without requiring significant modifications.
Accurate Counting with Advanced Inspection Functions
Accuracy is essential in pharmaceutical packaging, where every bottle must contain the correct quantity of tablets or capsules. The LFM-32 includes optional tablet and capsule inspection functions to support higher quality control standards.
The machine uses three-grade vibratory plates with eight channels to achieve stable product separation. This design helps prevent tablet overlap and improves counting reliability during continuous operation.
A precise bottle rejection mechanism further supports accurate production by automatically removing containers that do not meet counting requirements. This reduces the possibility of defective products reaching the market and helps maintain consistent packaging quality.
The system is suitable for tablets and capsules ranging from 1.5 mm to 21 mm in length. It can also accommodate different container designs, including round, oval, square, and rectangular bottles up to 160 mm in height.
Smart Control and Easy Operation for Pharmaceutical Manufacturing
Packaging equipment also needs practical control functions that allow operators to monitor machine status, adjust operating parameters, and respond to production issues during daily operation. Our LFM-32 integrates advanced control features to improve operation efficiency and production monitoring.
The system provides fault auto-diagnosis and real-time monitoring alarms, allowing operators to quickly identify potential issues. It can store up to 100 sets of product parameters, making product changeovers faster and more convenient.
The tool-less changeover design further simplifies operation by reducing adjustment time. Without hidden tablet traps, cleaning procedures become faster and more hygienic, supporting strict pharmaceutical production requirements.
All electronic tablet counting systems use 21 CFR Part 11 compliant software, helping manufacturers achieve better quality management and production traceability.
Practical Counting Equipment for Pharmaceutical Packaging Lines
Tablet and pill counting is closely connected with bottle feeding, filling, and downstream packaging processes. For high-volume production, the counting equipment needs to maintain a consistent output while working smoothly with the rest of the line.
Our LFM-32 Modular Counter is designed for automated counting applications where stable bottle handling and accurate product quantities are required. It can be used as part of a larger packaging line, making it suitable for manufacturers that need a high-speed tablet counting machine or an automatic pill counter machine for different bottle packaging applications.
We focus on equipment that is straightforward to integrate, operate, and maintain. By considering factors such as product handling, counting requirements, line configuration, and routine maintenance, Pharmapack provides equipment that can be matched to specific pharmaceutical packaging processes.
Advancing Pharmaceutical Counting Efficiency with Pharmapack
The demand for faster and more accurate pharmaceutical packaging continues to grow. We provide intelligent counting solutions that help businesses achieve higher productivity while maintaining precise quality control.
With modular designs, continuous motion technology, and advanced monitoring systems, Pharmapack supports manufacturers in building efficient and reliable packaging operations. Our goal is to help global pharmaceutical companies move toward smarter production with advanced counting solutions that are ready for the future.
