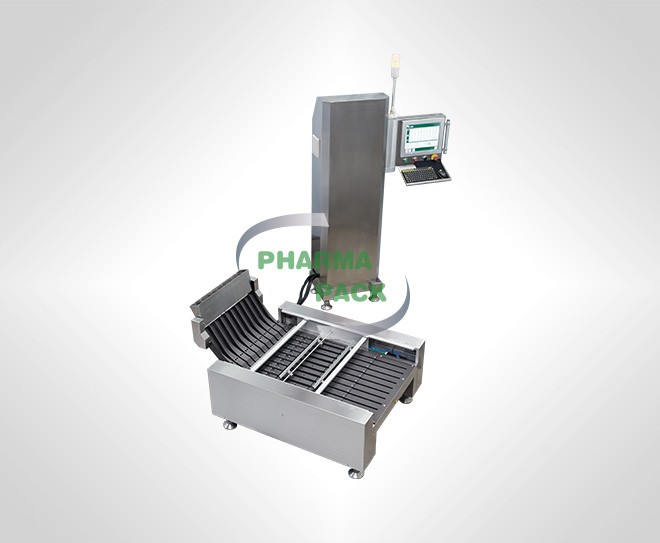

LFSS-10WT Weighing Machine 10 Row
LFSS-10WT
LFSS-10WT Weighing Machine 10 Row
Maximum Production Speed:50 Stokes / min (depending on the size of the product being inspected)

Model

LFSS-10WT

Max. Speed

50 Stokes / min

Stick qty.

10 lanes

Track pitch

76mm

Stick length

80mm~140mm

Detection accuracy

220/380V, 3P, 50/60Hz

Air supply

0.4-0.7Mpa  200L/min

Power consumption

2.0kW

Power supply

AC220V-240V  50/60Hz

Machine dimension

3600mm(L)×1400mm(W)×2400 mm(H)

Machine weight

1300Kg

See More
————— Details —————

WORK FLOW CHART

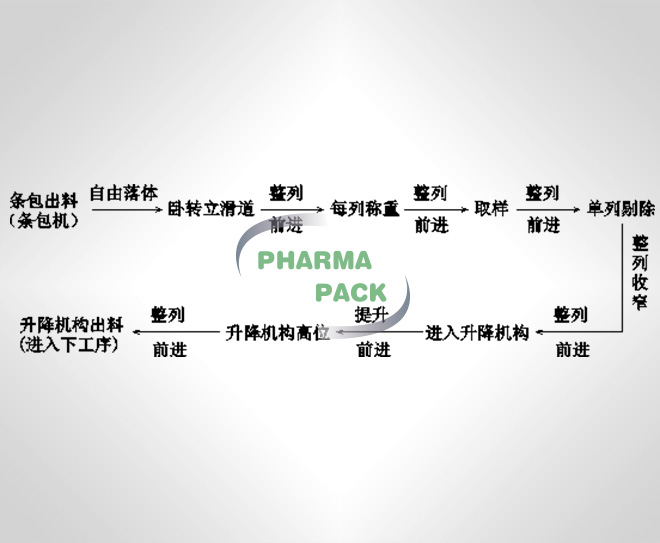

The LFSS-10WT 10-row single-row weighing work flow chart is as follows:


TECHNOLIGY ADVANTAGES

1.List of institutions

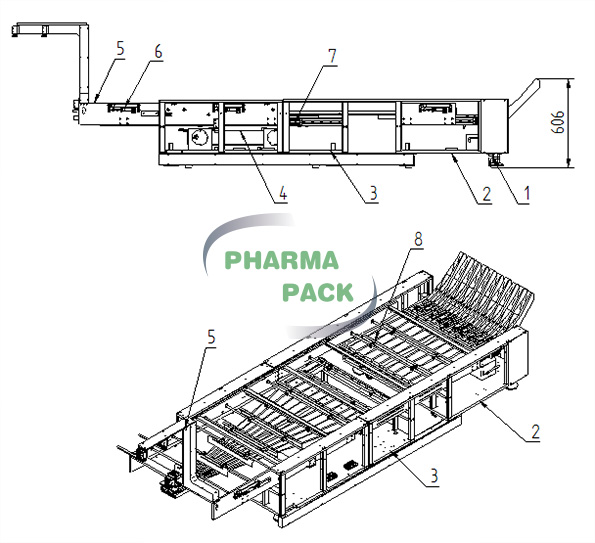

The List of institutions are the main body of this equipment, and its structure is shown in the figure below:

Under the action of the servo timing belt mechanism and the cylinder shifting mechanism, the function of intermittent and step-by-step forward conveying of multiple rows of bags is realized.


1-Foot support component

2-Frame component I

3-Frame component II

4-Servo component

5-Swing component

6-Shifting cylinder component

7-Linear slide component

8-Shifting components

2.Weighing module description

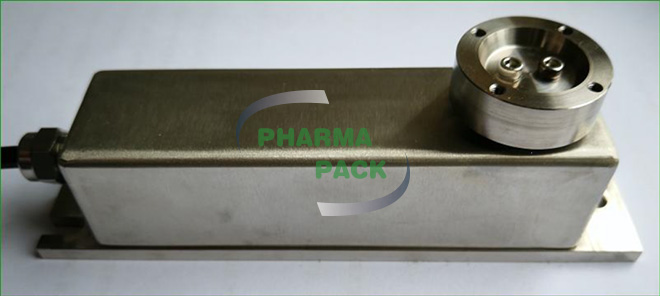

The sensor adopts the product of German HBM company with a maximum load of 750G (without weighing platform). With overload protection function, strong anti-interference ability, accurate and efficient weighing data. The protection level reaches IP65 level.


When installing two batches of modules, the old and new modules, the new version adds the sensor S/N code on the label, which is convenient for users to file and query.
